GASO T-200 Triplex Plunger Pump

IEQ is an OEM supplier of the GASO T-200 Pump. Let the friendly customer service staff at IEQ Industries help you find the GASO Pump and Parts you need.

Gaso T-200 Triplex Plunger Pump

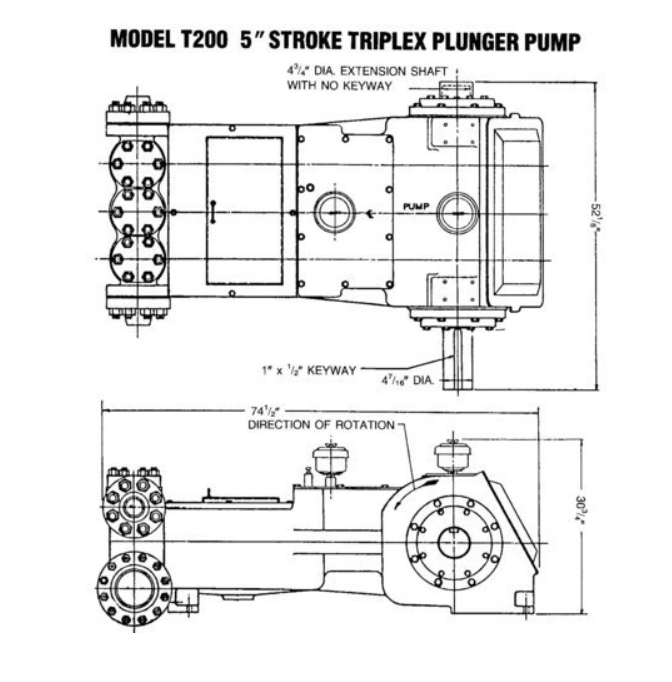

Want to make this drawing interactive?

Get access to our Interactive Parts List for this pump and others.
PSI
6000 PSI (max)
BPD
2800 BPD (max)
GPM
293.8 GPM (max)

Specifications

Pump Size:

Stroke length, 5″

Rated plunger load, 13200 pounds

Crankshaft Pin:

Diameter, in.: 5.75

Oil Capacity, 18 gallons

Weight, pump only on wood shipping skids, pounds (kg):

5000

Standard Materials for Fluid Ends:

T200-2

Forged Steel

Forged Ni. Alum. Bronze

T200-3

Cast Ni. Alum. Bronze

T200-4

Steel Billet

Power End Pressure

Lube System



Performance Chart

PUMPEnglish Units100 RPM200 RPM300 RPM360 RPM
Plunger Dia. In.GPM per RPMMax. Press. PSIBPDGPMBPDGPMBPDGPMBPDGPM
T 200-21.50.1147600039511.578522.9118034.4141541.3
1.750.1562549053515.6107031.2161046.9192556.2
20.204420570020.4140040.8210061.2251573.4
2.250.2582332088525.8177051.6265577.5318592.9
T 200-32.250.2582332088525.8177051.6265577.5318592.9
2.50.31882690109531.9218563.8328095.63935114.8
2.750.38572220132538.6264577.13965115.74760138.9
30.4591870157545.9314591.84720137.75665165.2
3.250.53871590185053.93695107.75540161.66650193.9
T 200-43.250.53871590185053.93695107.75540161.6665193.9
3.50.62471370214562.54280124.96425187.47710224.9
3.750.71721195246071.74915143.47380215.28855258.2
40.8161050280081.65595163.28395244.810075293.8
Brake Horsepower required55.5111.1166.7200

Volumetric Rate is based on 100% Volumetric Efficiency. Brake Horsepower/Kilowatts Required is based on 80% Mechanical Efficiency.

Operating below 50 RPM? An auxiliary lubrication system is required.
