Wheatley 5P200A (31Q-2) Quintuplex Plunger Pump

IEQ is an OEM supplier of the Wheatley 5P-200A (31Q-2) Pump. Let the friendly customer service staff at IEQ Industries help you find the GASO Pump and Parts you need.

Download your copy of the 5P200A Specs.

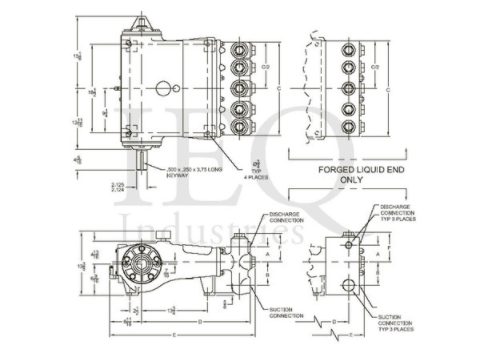

Wheatley 5P200A Quintuplex Pump

Want to make this drawing interactive?

Get access to our Interactive Parts List for this pump and others.
PSI
2042 PSI (max)
BPD
1968 BPD (max)
GPM
57.4 GPM (max)

Specifications

Performance Chart

PUMPEnglish Units    50 RPM 150 RPM 250 RPM 350 RPM 400 RPM 490 RPM
Plunger Dia. In.Plunger Area Sq. In.BPD per RPMGPM per RPMMax. Press. PSIBPDGPMBPDGPMBPDGPMBPDGPMBPDGPMBPDGPM
31Q-2L (5P200A)1.752.40534.01620.11718442015.8660317.6100529.3140641160746.9196857.4
1.6252.07393.4630.1019791745.0552015.286625.3121335.4138640.4169749.5
1.51.76712.95070.086111491484.344312.973821.5103330.1118134.4144642.2
1.3751.48492.47940.072313671243.6237210.862018.186825.399228.9121535.4
1.251.22722.04910.059816541032.993088.9651314.971820.982023.9100529.3
1.1250.9941.65980.04842042832.422497.2641512.158116.966419.481423.7
Brake Horsepower required41017222631
PUMPMetric Units    50 RPM 150 RPM 200 RPM 250 RPM 350 RPM 400 RPM
Plunger Dia. mmPlunger Area cm2M3/Hr per RPML/Sec. per RPMMax. Press. kPaM3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.
31Q-2L (5P200A)4415.5180.02660.007458191.330.373.991.116.651.859.312.5910.642.9613.043.62
4113.380.02290.006467491.150.323.440.965.731.598.032.239.182.5511.243.12
3811.4010.01950.005479200.980.272.930.814.891.366.841.97.822.179.582.66
359.580.01640.004694260.820.232.460.684.111.145.751.66.571.828.052.24
327.9170.01360.0038114050.680.192.040.573.390.944.751.325.431.516.651.85
296.4130.0110.0031140810.550.151.650.462.750.763.851.074.41.225.391.5
Kilowatts Required37.513171923

For operation below 75 RPM, an auxiliary lubrication system is required.
