Wheatley P50 (2S-1) Simplex Plunger Pump

IEQ is an OEM supplier of the Wheatley P50 (2S-1) Pump. Let the friendly customer service staff at IEQ Industries help you find the GASO Pump and Parts you need.

Download your copy of the P50 (2S-1) Specs.

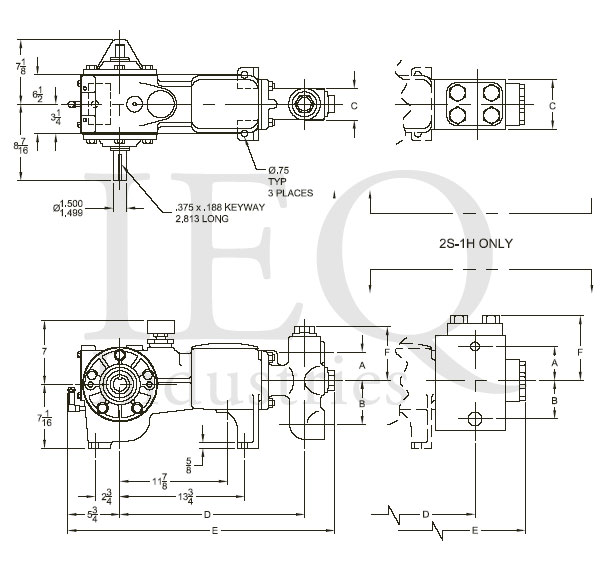

Wheatley P50 (2S-1) Simplex Pump

Want to make this drawing interactive?

Get access to our Interactive Parts List for this pump and others.
PSI
4595 PSI (max)
BPD
164 BPD (max)
GPM
4.8 GPM (max)

Specifications

Performance Chart

PUMPEnglish Units    50 RPM 150 RPM 200 RPM 250 RPM 300 RPM 350 RPM
Plunger Dia. In.Plunger Area Sq. In.BPD per RPMGPM per RPMMax. Press. PSIBPDGPMBPDGPMBPDGPMBPDGPMBPDGPMBPDGPM
5S-2L (P50ALS)23.14161.020.0297646511.491.534.462045.952557.443068.9235710.41
1.8752.76120.89650.0261735451.311353.921805.232256.542697.843149.15
1.752.40530.78090.0228844401.141183.421574.561965.692356.832747.97
1.6252.07390.67340.0196979340.981022.951353.931694.912035.892366.87
1.51.76710.57370.01671149290.84872.511153.351444.181735.022015.86
5S-2M (P50A)1.752.40530.78090.0228844401.141183.421574.561965.692356.832747.97
1.6252.07390.67340.0196979340.981022.951353.931694.912035.892366.87
1.51.76710.57370.01671149290.84872.511153.351444.181735.022015.86
1.3751.48490.48210.01411367250.7732.11972.811213.521454.221694.92
1.251.22720.39840.01161654200.58601.74802.321002.911203.491404.07
1.1250.9940.32270.00942042170.47491.41651.88812.35972.821133.29
5S-2H (P50H)10.78540.2550.00742585130.37391.12511.49641.86772.23902.6
0.8750.60130.19520.00573376100.28300.85401.14491.42591.71691.99
0.750.44180.14340.0042459580.21220.63290.84361.05441.26511.46
Brake Horsepower required0.82.343.94.75.5
PUMPMetric Units    50 RPM 150 RPM 200 RPM 250 RPM 300 RPM 350 RPM
Plunger Dia. mmPlunger Area cm2M3/Hr per RPML/Sec. per RPMMax. Press. kPaM3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.M3/HrL/Sec.
5S-2L (P50ALS)5120.2680.00680.001944550.340.091.010.281.350.381.690.472.030.562.360.66
4817.8140.00590.001650690.30.080.890.251.190.331.480.411.780.492.080.58
4415.5180.00520.001458190.260.070.780.221.030.291.290.361.550.431.810.5
4113.380.00450.001267490.220.060.670.190.890.251.120.311.340.371.560.43
3811.4010.00380.001179200.190.050.570.160.760.210.950.261.140.321.330.37
5S-2M (P50A)4415.5180.00520.001458190.260.070.780.221.030.291.290.361.550.431.810.5
4113.380.00450.001267490.220.060.670.190.890.251.120.311.340.371.560.43
3811.4010.00380.001179200.190.050.570.160.760.210.950.261.140.321.330.37
359.580.00320.000994260.160.040.480.130.640.180.80.220.960.271.120.31
327.9170.00260.0007114050.130.040.40.110.530.150.660.180.790.220.920.26
296.4130.00210.0006140810.110.030.320.090.430.120.530.150.640.180.750.21
5S-2H (P50H)255.0670.00170.0005178210.080.020.250.070.340.090.420.120.510.140.590.16
223.8790.00130.0004232760.060.020.190.050.260.070.320.090.390.110.450.13
192.850.0010.0003316810.050.010.140.040.190.050.240.070.290.080.330.09
Kilowatts Required0.61.732.93.54.1

Volumetric Rate is based on 100% Volumetric Efficiency. Brake Horsepower/Kilowatts Required is based on 72% Mechanical Efficiency.

For operation below 50 RPM, an auxiliary lubrication system is required.
